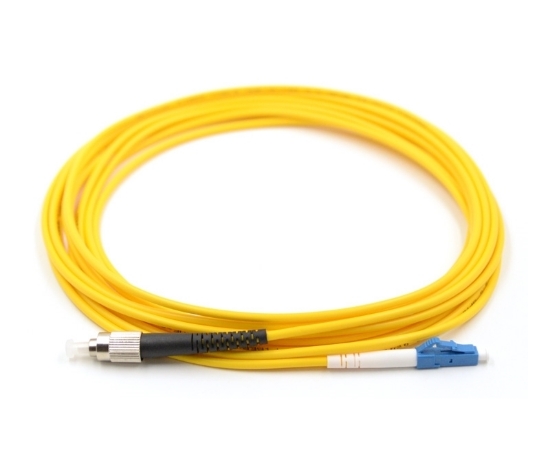

LC/UPC – FC/UPC Singlemode Fiber Optic Patch Cord
The LC/UPC to FC/UPC Singlemode Patch Cord from FiberMod is a hybrid fiber optic jumper cable designed to connect devices and distribution panels that use different connector interfaces. One end features a compact LC/UPC connector, while the other uses a threaded FC/UPC connector, both with Ultra Physical Contact (UPC) polishing for low insertion loss and high return loss.
This patch cord is built with singlemode G.657A1 or G.652D fiber, ensuring excellent optical performance, flexibility, and durability. Fully compliant with IEC, TIA/EIA, and Telcordia GR-326 standards, it is widely used in FTTH, CATV, LAN/WAN, test equipment, and data center applications.
Application
FTTH / FTTx Access Networks
Passive Optical Networks (PON)
Telecommunications & CATV Networks
LAN / WAN & Data Centers
Optical Test Equipment
Industrial / High-vibration Environments
Features & Benefits
Hybrid patch cord with LC/UPC and FC/UPC connectors.
Low insertion loss & excellent return loss.
Secure threaded FC connector for vibration-prone environments.
Available in simplex or duplex options.
Durable LSZH or PVC jacket.
Complies with IEC, TIA/EIA, and Telcordia GR-326 standards.
RoHS & REACH compliant.
Technical Specifications
Parameter
Connector Type
Fiber Type
Polishing Type
Insertion Loss
Return Loss
Jacket Material
Cable Diameter
Operating Wavelength
Operating Temperature
Storage Temperature
Length Options
Specification
LC/UPC – FC/UPC
Singlemode G.657A1 / G.652D
UPC (Ultra Physical Contact)
≤ 0.3 dB
≥ 50 dB
LSZH / PVC
2.0 mm / 3.0 mm
1310 nm / 1550 nm
-20℃ to +75℃
-40℃ to +85℃
1m, 2m, 3m, 5m, 10m or customized
