Fiber Optic Splitters/PATCH CORDS

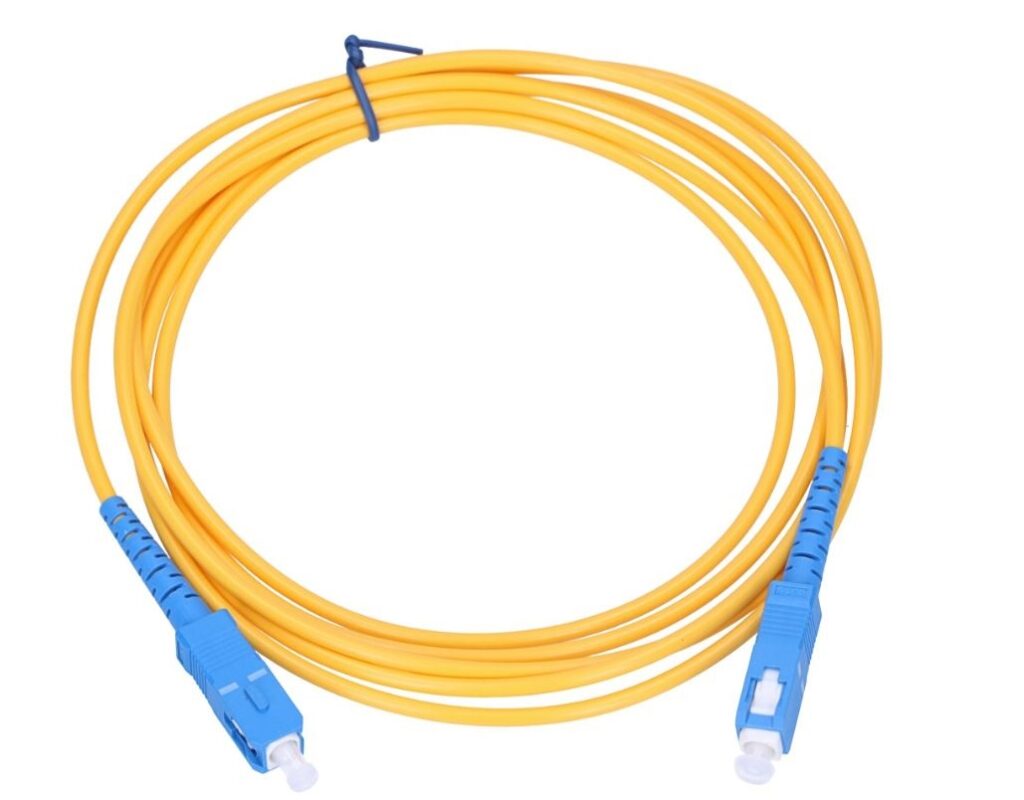

SC/UPC – SC/UPC Singlemode Fiber Optic Patch Cord
The SC/UPC to SC/UPC Singlemode Patch Cord from FiberMod is a high-quality fiber optic jumper cable designed for stable, low-loss optical connections. It comes with SC connectors featuring UPC (Ultra Physical Contact) polishing on both ends, ensuring low insertion loss and high return loss.
Built with singlemode G.657A1 or G.652D fiber, this patch cord is rugged, flexible, and suitable for telecommunications, FTTH, CATV, LAN, and data center applications. Fully compliant with IEC, TIA/EIA, and Telcordia standards, it provides excellent reliability in demanding network environments.
Application
FTTH / FTTx Access Networks
Telecommunications & CATV Networks
LAN / WAN Connections
Data Centers & Broadband Networks
Test Equipment & Optical Sensors
Features & Benefits
SC/UPC connectors on both ends for plug-and-play connections.
Low insertion loss & excellent return loss.
Simplex or duplex options available.
Durable LSZH or PVC jacket for safety and flexibility.
Meets IEC, TIA/EIA, and Telcordia GR-326 standards.
RoHS and REACH compliant.
Technical Specifications
Parameter
Connector Type
Fiber Type
Polishing Type
Insertion Loss
Return Loss
Jacket Material
Cable Diameter
Operating Wavelength
Operating Temperature
Storage Temperature
Length Options
Specification
SC/UPC to SC/UPC
Singlemode G.657A1 / G.652D
UPC (Ultra Physical Contact)
≤ 0.3 dB
≥ 50 dB
LSZH / PVC
2.0 mm / 3.0 mm
1310 nm / 1550 nm
-20℃ to +75℃
-40℃ to +85℃
1m, 2m, 3m, 5m, 10m or customized
